Total Surround
Visibility
Four wide-angle cameras stitch together into a single real-time bird's eye view, giving drivers a clear top-down view of everything around the vehicle.

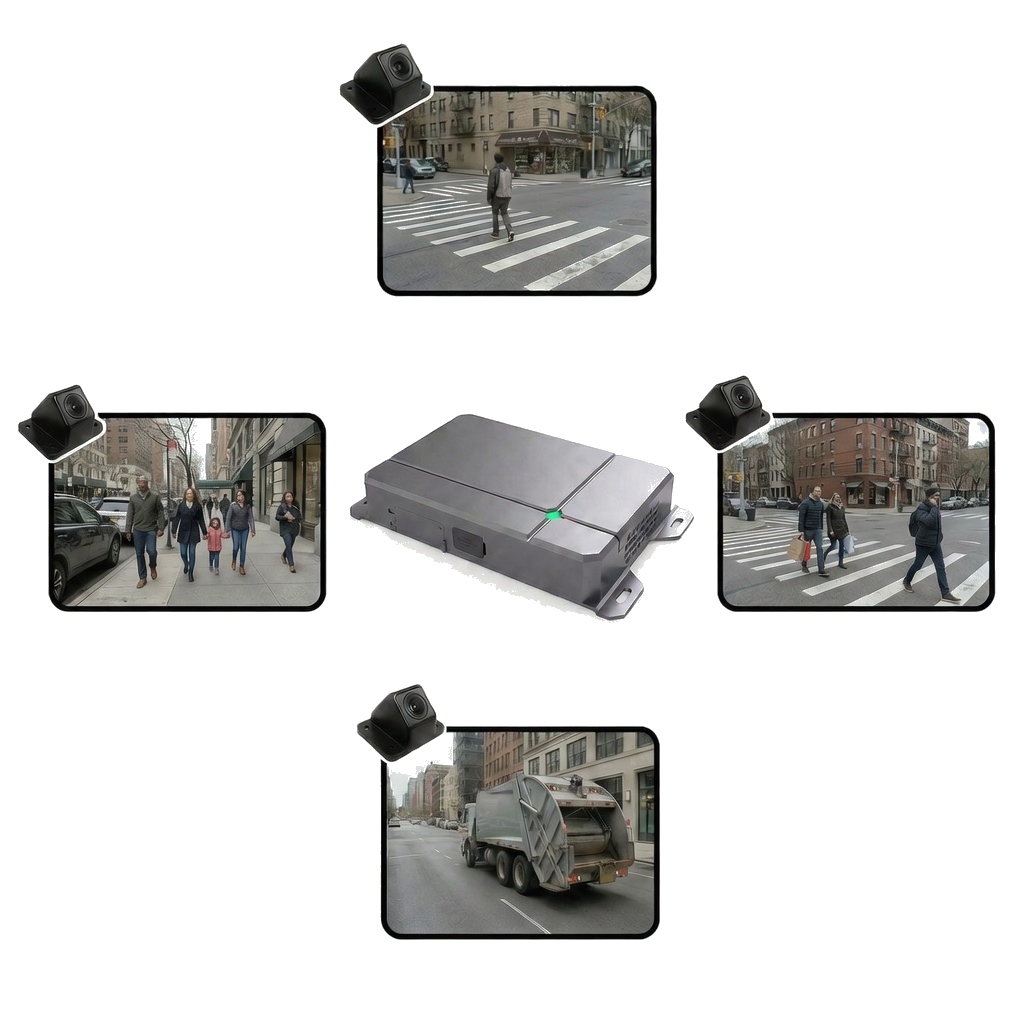

Four Cameras. One Seamless View.
Wide-Angle Cameras
Mount at front, rear, and both sides.
Image Stitching
Feeds stitch into a real-time top-down view.
Live Updates
Real-time view as the vehicle moves.
Auto View Switching
Switches to rear/side when reversing or signaling.
Full 360° Surround Coverage

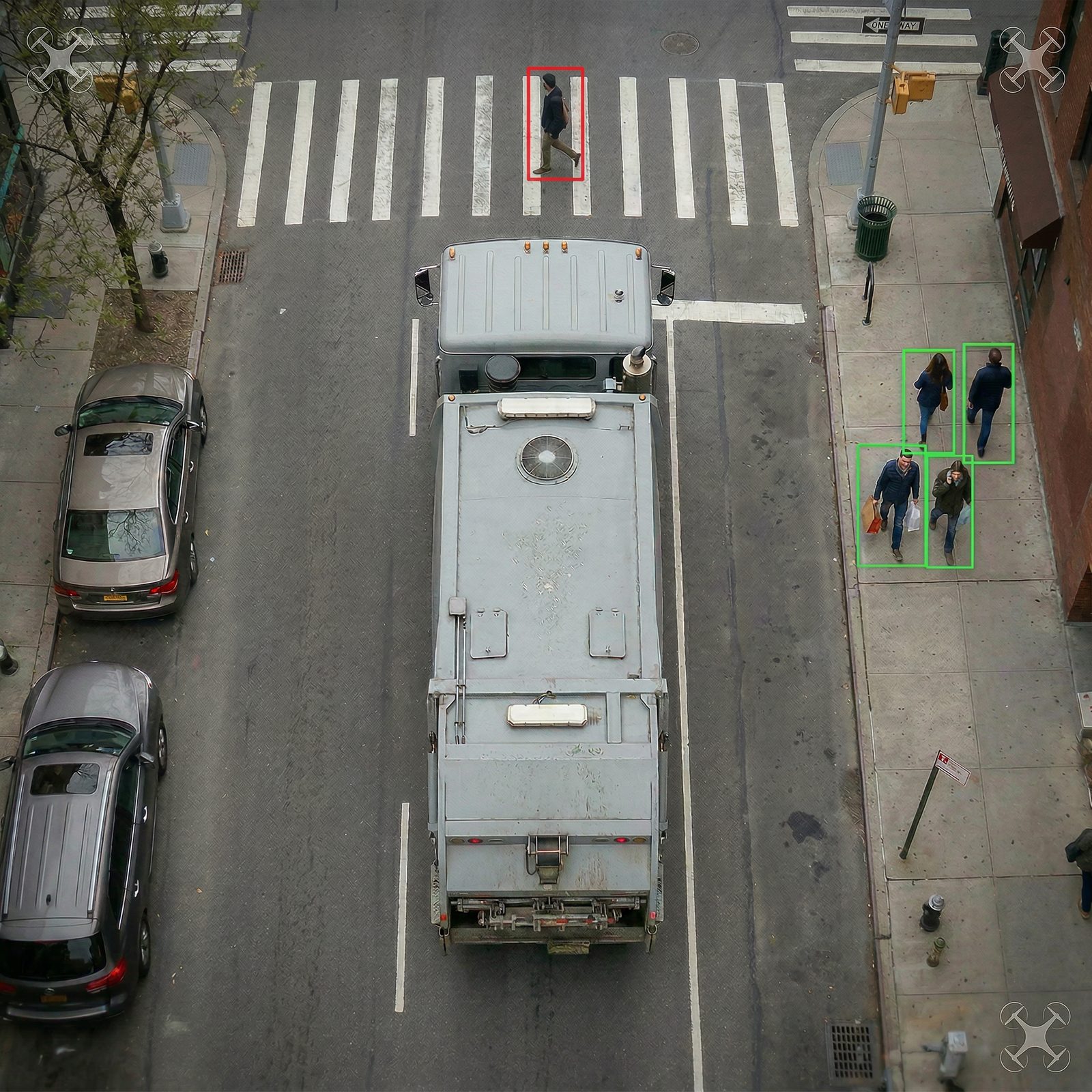

Built-in Pedestrian Detection
Built for Real-World Fleet Operations
The 360° Bird's Eye system is purpose-built for commercial vehicles: rugged, reliable, and designed to work seamlessly with the S-Vision MDVR platform.

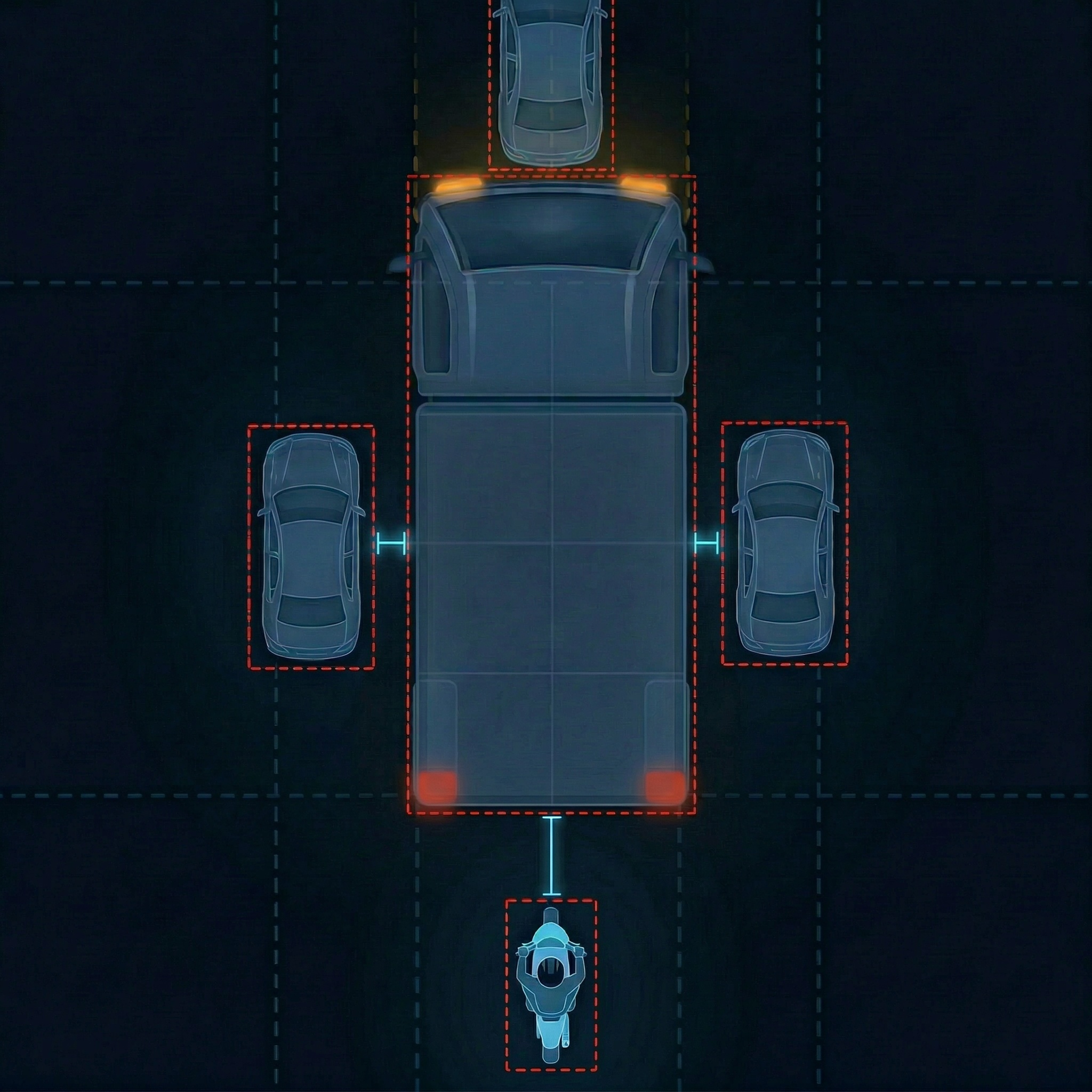

Real-Time Bird's Eye View
Four wide-angle cameras stitch into a seamless top-down perspective, updated in real time as the vehicle moves. Drivers see everything around the vehicle without turning their head.
Auto View Switching
Automatically switches to rear camera when reversing and side camera when signaling, giving drivers the most relevant view at every moment without manual input.
AI Pedestrian Detection
Integrated AI identifies pedestrians and cyclists in the surround zone, delivering visual and audible warnings when vulnerable road users are detected near the vehicle.
In-Cab Monitor Display
Dedicated in-cab monitor presents the stitched 360° view in crystal clarity. Split-screen mode allows simultaneous bird's eye and single-camera views.
Where 360° Makes the Difference
Ready-Mix & Site Delivery
Drum trucks reverse onto ground nobody laid out for them — no marked lanes, changing spoil piles, and crews working on foot within a few feet of the chassis. The top-down view shows the whole vehicle against a site that looked different yesterday.
Metro Bus & Transit Stops
At the kerb, a bus is surrounded on three sides at once: passengers crossing the front, cyclists filtering down the nearside, traffic passing the offside. Surround visibility covers all three without the driver breaking eye contact with the door.
The School Bus Danger Zone
The most dangerous ground on a school route is the few feet around the bus, where children cross in front and behind and are shorter than every mirror is set for. The stitched view covers that ring before the bus moves.
Yards, Docks & Delivery Streets
Long-haul and delivery vehicles spend their tightest minutes off the road — blind-side reversing onto a dock, threading a full-length trailer through a yard, stopping in a city street with cyclists on the nearside. Auto-switching puts the right camera up for each.
Works with Your Existing S-Vision MDVR
The 360° Bird's Eye module connects directly to the 6-channel or 8-channel MDVR: no additional recorders required. All surround video is recorded, stored, and accessible through the Cloud Platform.
Plug & Play
Connects directly to MDVR via dedicated camera inputs. No additional hardware or recorders needed.
Cloud-Recorded
All 360° video is recorded to the MDVR and uploaded to the Cloud Platform, available for review, evidence, and coaching.
Auto-Calibration
Cameras auto-calibrate after installation, reducing setup time and ensuring consistent stitching quality across your fleet.
What the System Actually Does
Of the ground around the vehicle on one screen, updated live as it moves
Rear view on reverse, side view on signal — no driver input
Pedestrian and cyclist alerts anywhere in the surround zone
Recorded surround video for claims, evidence and coaching
